Welded Wire Mesh

  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
Τόπος καταγωγής Ανπίνγκ της Κίνας
Μάρκα QIANPU
Πιστοποίηση ISO
Ποσότητα παραγγελίας min 50 ρολά
Συσκευασία λεπτομέρειες Εσωτερικό με έναν σωλήνα εγγράφου, εξωτερικό με την πλαστική ταινία ή αδιάβροχο έγγραφο, έπειτα στην
Χρόνος παράδοσης 20 Ημέρες
Όροι πληρωμής T/T, Western Union, L/C
Λεπτομέρειες
Όνομα προϊόντος ss συγκολλημένα συρματόπλέγματα Υλικό SS304 Η SS316
Σχήμα τρύπας Τετραγωνική τρύπα ή τρύπα αυλακώσεων Μέγεθος ρολού 36"×100 πόδια, 48"×100 πόδια, κ.λπ
Μέγεθος πίνακα 3ft× 6ft, 4ft × 8ft, 5ft × 10ft, 1m × 2m, 1,2m × 2,4m, 1,5m × 3m, 2m × 4m Χρώμα Φωτεινό ασήμι
Επισημαίνω

stainless steel welded wire mesh

,

welded wire mesh fencing

,

welded wire mesh panels
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

High-quality low-carbon steel wire, galvanized steel wire or stainless steel wire is adopted as the raw material, which is welded and formed by automatic precision electric welding equipment. It has firm welding points, flat mesh surface and uniform structure, and has multiple functions such as protection, isolation and load-bearing. It is widely used in construction, agriculture, industry, municipal administration, breeding and other fields, with outstanding cost performance. It can be customized according to customer needs to adapt to different scenarios.



Specifications:

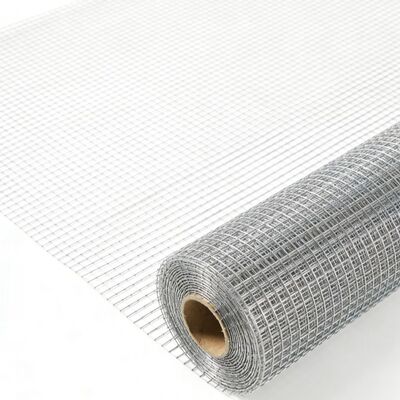

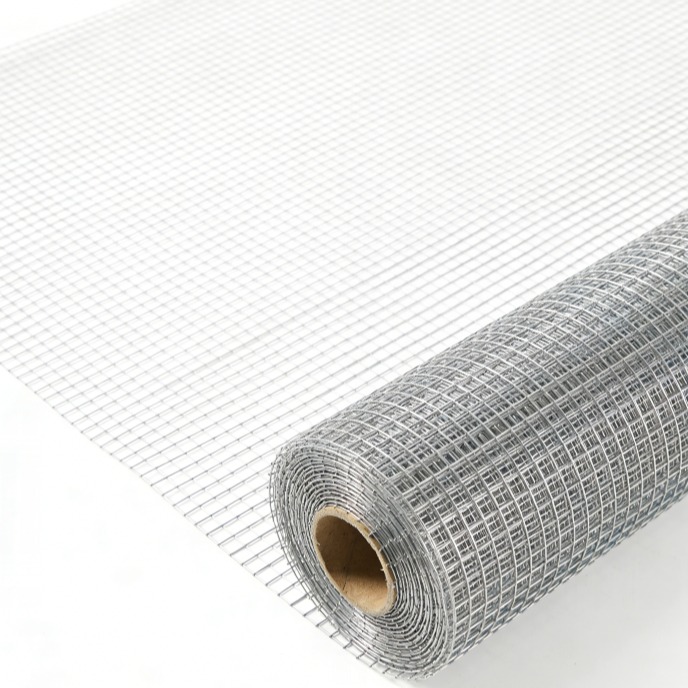

Stainless Steel Welded Wire Mesh in Rolls
Mesh Size Wire Diameter
mm inch BWG gauge mm
6.4 1/4 24–22 0.56–0.71
9.5 3/8 23–19 0.64–1.07
12.7 1/2 22–16 0.71–1.65
19.1 3/4 21–16 0.81–1.65
25.4 × 12.7 1 × 1/2 21–16 0.81–1.65
25.4 1 21–14 0.81–2.11
38.1 1-1/2 19–14 1.07–2.11
25.4 × 50.8 1 × 2 17–14 1.47–2.11
50.8 2 16–12 1.65–2.77

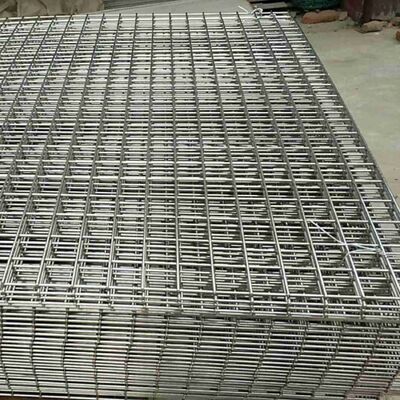

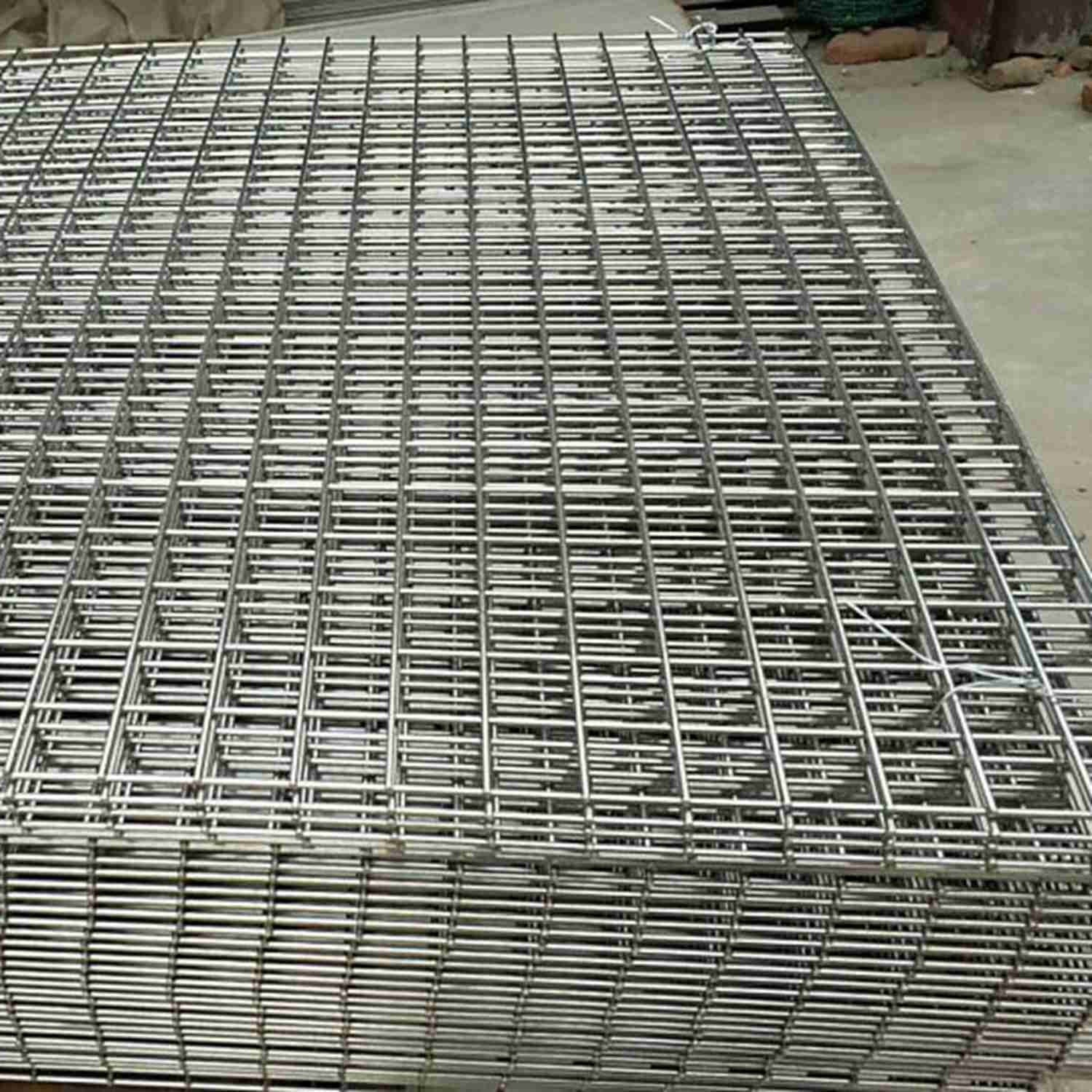

Stainless Steel Welded Mesh Panels
Mesh Size Wire Diameter Panel Width & Length
12.7 mm 1/2" × 1/2" 1.0–2.0 mm



3 feet × 6 feet

4 feet × 8 feet

5 feet × 10 feet

1 m × 2 m

1.5 m × 3 m

2 m × 4 m
25.4 mm 1" × 1" 1.5–3.5 mm
38.1 mm 1-1/2" × 1-1/2" 2.0–5.0 mm
50.8 mm 2" × 2" 2.0–6.0 mm
76.2 mm 3" × 3" 3.0–7.0 mm
101.6 mm 4" × 4" 3.0–8.0 mm
127 mm 5" × 5" 4.0–9.0 mm
152.4 mm 6" × 6" 4.0–10.0 mm
Other panel sizes can also be made according to request.



Material:

Stainless Steel 304 and 316.



Features:

Environmentally friendly;

Elegant appearance;

Strong structure;

Easy to clean;

Non-toxic;

Excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistanc.



Main Application Scenarios:

Construction: Used for thermal insulation, plastering mesh (to prevent cracking), floor slab reinforcement, underfloor heating, and foundation pit protection. An indispensable auxiliary material complying with industry standards.

Agriculture: Fences for farmland, vegetable gardens, orchards (bird/animal protection), and breeding houses (chicken coops, duck coops, pig pens). Mesh sizes can be customized for different livestock.

Industry: Equipment protection, workshop/warehouse division, and mechanical safety barriers. Effectively separates areas, protecting personnel and equipment in factories and workshops.

Municipal & Civil: Community fences, park protection, road isolation, manhole cover guards, balcony railings, and window grilles. Combines protection and aesthetics for urban construction.

Other Uses: Art decoration, crafts, filtration (small mesh sizes), and temporary protection (bare wire).

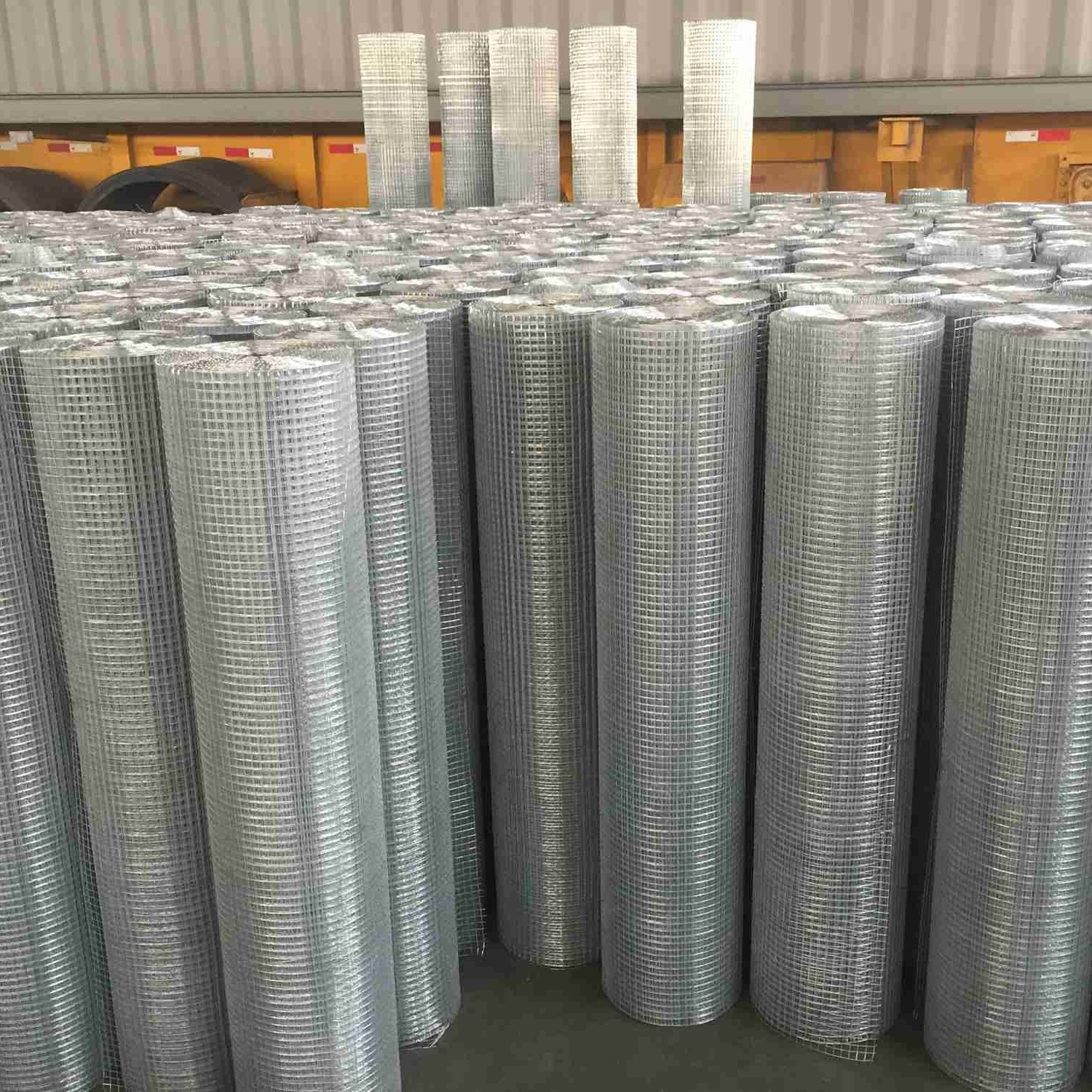

Welded Wire Mesh 0



Packing:

in waterproof paper and film, then in pallets. Custom packing available at request.



Welded Wire Mesh 1Welded Wire Mesh 2
